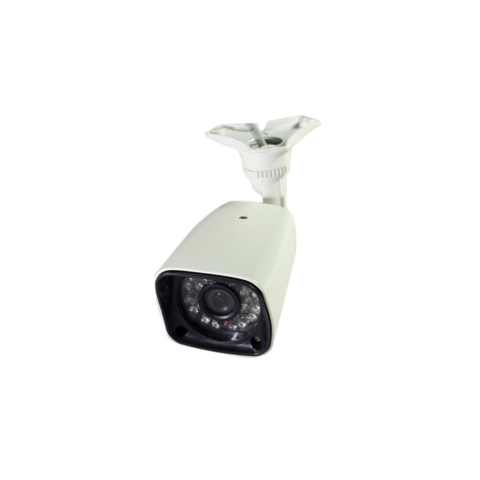

Compact metal bullet camera with SONY CCD sensor, 15M IR range, and 3-axis bracket for flexible indoor/outdoor installation.
The Citocore TS-306 Compact IR Bullet Camera delivers dependable surveillance performance in a durable and easy-to-install design. Equipped with a 1/3″ SONY Super HAD II CCD sensor, it provides high-quality video in selectable resolutions up to 700TVL, ensuring crisp and accurate imaging for professional security systems.
Built with a 3.6mm fixed lens, the TS-306 offers a wide viewing angle ideal for entrances, corridors, and small to medium-sized areas. Its 24 infrared LEDs provide up to 15 meters of clear night vision, with automatic day/night switching and 0 Lux (IR on) performance.
The metal housing, combined with a 3-axis mounting bracket, allows for flexible installation and durability in both indoor and outdoor settings. With advanced image enhancement technologies such as 2DNR, DWDR, and BLC, this camera ensures stable and detailed visuals even in challenging light conditions.
1/3″ SONY Super HAD II CCD image sensor
Resolution options: 480TVL / 600TVL / 700TVL
3.6mm fixed lens for balanced field of view
IR night vision range: 10–15 meters (24 × Φ5 LEDs)
Constant current IR LED PCB for stable illumination
Automatic day/night switching with 0 Lux (IR on)
Multi-language OSD (up to 9 languages)
Advanced image control: 2DNR, DWDR (ATR), HLC, BLC, Motion Detection, Privacy Mask
Weather-resistant metal housing with 3-axis mounting bracket
Lightning-proof protection for outdoor reliability
| System | 1/3" SONY Super HAD II CCD; metal housing; compact bullet type; 3-axis bracket for adjustable mounting |
|---|---|
| Video | Color 480TVL / 600TVL / 700TVL; 0 Lux (IR on); 2DNR, DWDR, HLC, BLC, Privacy Mask, Motion Detection, Mirror |
| Audio | unknown |
| Networking | Analog video output (1.0Vp-p Composite, 75 Ohm) |
| Storage | unknown |
| Power | DC12V ±10%; 200mA / 400mA (IR on) |
| Environment | Operating temperature: −20°C to +50°C; weather-resistant design; lightning-proof |
| Smart & App | Motion detection, privacy masking, mirror mode, and multi-language OSD menu |
