8-channel DVR with real-time recording, HDMI/VGA output, PTZ and alarm I/O, and ONVIF compatibility for professional surveillance systems.

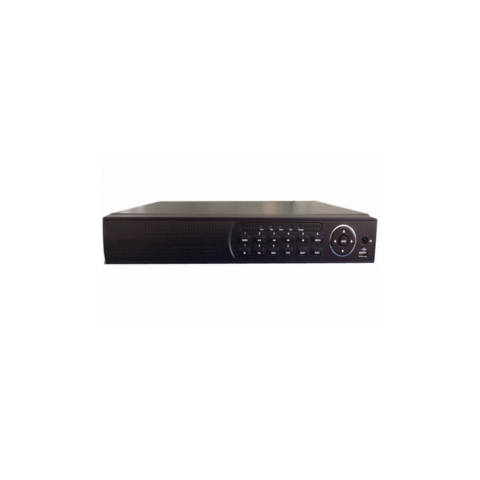

The Citocore QX-8008H DVR delivers high-performance 8-channel real-time recording for medium to large-scale security systems.
With support for HDMI and VGA output, this model provides crystal-clear playback at 1080P resolution.
It features 8 video channels, 4 audio inputs, and 1 audio output, along with full PTZ control and 4 alarm inputs for flexible system integration.
ONVIF compatibility ensures interoperability with a wide range of cameras and NVR systems.
Built for reliability and ease of use, the QX-8008H is ideal for offices, retail, and industrial installations.
8-channel real-time recording
H.264 video compression
HDMI (1080P) and VGA display output
4-channel audio input / 1 audio output
ONVIF protocol and PTZ control
8-channel synchronous playback
4 alarm inputs / 1 alarm output
Compact metal chassis with front control panel
| Category | Details |
|---|---|
| Model | QX-8008H |
| System | 8-channel DVR, real-time recording; H.264 encoding; ONVIF compatible. |
| Video I/O | 8 video inputs / 2 outputs (TV/VGA); HDMI output (1080P). |
| Audio I/O | 4 audio inputs / 1 RCA audio output. |
| Playback | 8-channel synchronous playback supported. |
| PTZ Control | Supported via RS-485 interface; multi-protocol control. |
| Alarm I/O | 4 inputs / 1 output for alarm system integration. |
| Networking | ONVIF protocol; RJ45 Ethernet port; remote monitoring supported. |
| Storage | 1 SATA HDD bay, supports up to 8 TB (verify). |
| Power | DC 12 V / 3 A (power adapter included). |
| Environment | Operating temperature −10 °C ~ +55 °C; humidity 10–90 % RH; pressure 86–106 KPa. |
| Size / Weight | 335 × 250 × 50 mm; weight: 2.6 kg; box size: 380 × 125 × 305 mm. |
| Smart & App | Remote monitoring and playback via supported mobile application (verify app version). |
