4-channel DVR with WD1 960H resolution, HDMI/VGA output, PTZ control, and ONVIF support for high-quality analog video systems.

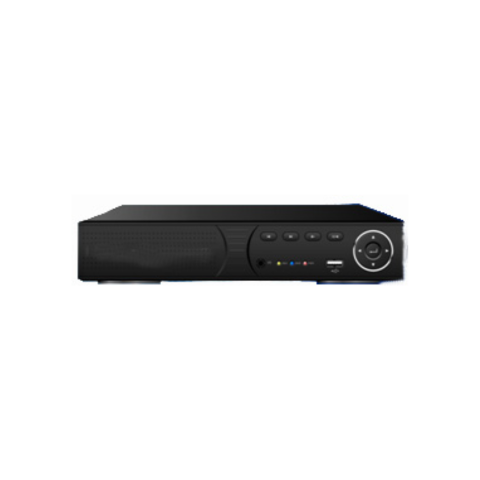

The Citocore QX-8604D DVR offers reliable 4-channel video recording for small to medium security installations.
Featuring WD1 960H recording resolution, this model supports HDMI and VGA outputs for high-definition playback.
Equipped with 4 video and 4 audio inputs, PTZ camera control, and ONVIF protocol compatibility, it ensures full flexibility and integration with analog and IP systems.
The user-friendly interface, USB mouse, and IR remote make it easy to manage and configure.
Built in a compact and robust chassis, the QX-8604D is designed for continuous, stable performance.
4-channel WD1 960H DVR
H.264 video compression
HDMI (1080P) and VGA outputs
4-channel audio input / 1 audio output
ONVIF compatibility and PTZ control
2-channel synchronous playback
Plug & play interface with USB mouse and remote control
| Category | Details |
|---|---|
| Model | QX-8604D |
| System | 4-channel WD1 960H DVR; H.264 compression; real-time recording and playback; ONVIF compatible. |
| Video I/O | 4 video inputs / 2 video outputs (TV/VGA); HDMI (1080P) supported. |
| Audio I/O | 4 audio inputs / 1 RCA audio output. |
| Playback | 2-channel synchronous playback supported. |
| PTZ Control | Supported via RS-485 interface. |
| Networking | ONVIF protocol; Ethernet RJ45 port; remote access supported. |
| Storage | 1 internal SATA HDD bay; capacity up to 6 TB (verify). |
| Power | DC 12 V / 3 A power supply included. |
| Environment | Operating temperature −10 °C to +55 °C; humidity 10–90 % RH; pressure 86–106 KPa. |
| Size / Weight | 250 × 230 × 45 mm; 2.6 kg. |
| Smart & App | Remote monitoring via compatible app (verify app version). |
