Compact SONY CCD analog dome camera with 3.6 mm lens and 15 m IR range for day and night surveillance.

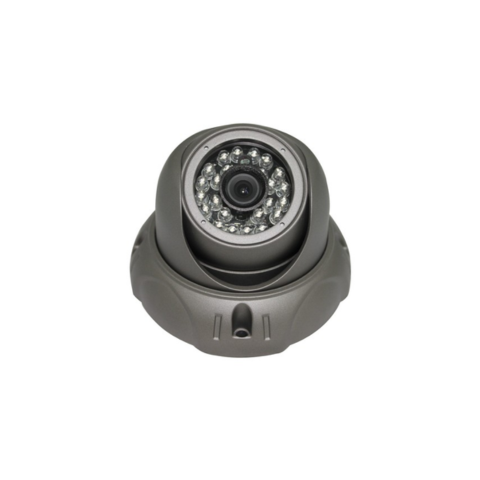

The Citocore CITO-TR437 is a high-definition analog dome camera designed for reliable and clear video monitoring in both residential and commercial environments. Equipped with a 1/3″ SONY Super HAD II CCD image sensor, it offers resolutions up to 1000 TVL for excellent color reproduction and image sharpness.
Its 3.6 mm fixed lens provides a wide-angle view ideal for indoor or covered outdoor areas, while the built-in infrared LEDs ensure visibility up to 15 meters in complete darkness. The constant-current IR PCB board enhances LED stability and extends the lifespan of night vision performance.
With a durable metal casing, optional cable OSD or UTC control, and advanced imaging features such as DWDR (ATR), 2DNR, HLC, and motion detection, the CITO-TR437 delivers robust and stable operation in temperatures ranging from −20 °C to +50 °C.
Compact, easy to install, and compatible with standard analog DVRs, it’s a professional-grade choice for installers seeking quality and simplicity.
1/3″ SONY Super HAD II CCD sensor for vivid, clear imaging
Resolution options: 480TVL / 600TVL / 700TVL / 800TVL / 1000TVL
3.6 mm wide-angle lens for general surveillance coverage
Infrared night vision up to 15 m with 24 LEDs (Φ5 mm)
Constant current IR PCB for extended LED life
DWDR (ATR), 2DNR, HLC, BLC, privacy, and motion detection functions
Metal case with lightning-proof circuit protection
Operating temperature: −20 °C to +50 °C
| System | 1/3" SONY Super HAD II CCD; metal case; analog dome camera; UTC/cable OSD optional |
|---|---|
| Video | 480–1000 TVL resolution (color); 3.6 mm lens; 0 Lux (IR on); DWDR (ATR), 2DNR, HLC, BLC, privacy, and motion detection; 10–15 m IR range (24 × Φ5 LEDs); composite video 1.0 Vp-p, 75 Ω |
| Audio | unknown |
| Networking | Analog CVBS output; OSD menu control (via cable/UTC) |
| Storage | unknown |
| Power | DC 12 V ± 10%; 200 mA / 400 mA (IR on) |
| Environment | Operating temperature −20 °C to +50 °C; lightning-proof; metal housing |
| Smart & App | DWDR, 2DNR, HLC, BLC, motion detection, privacy mask; no network app |
