High-resolution analog dome camera with SONY CCD sensor, 2.8–12 mm vari-focal lens, and 30 m IR range.

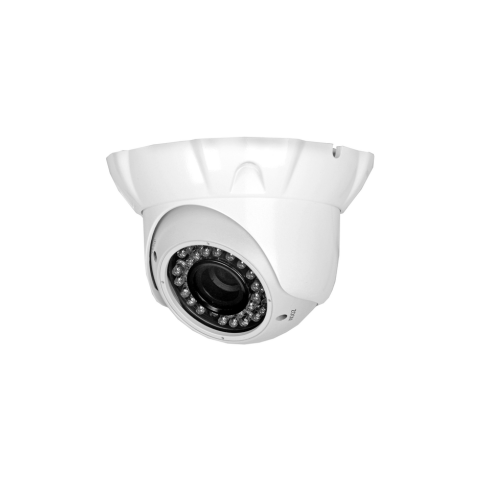

The Citocore CITO-TR437F HD Analog Dome Camera delivers professional-grade video performance with SONY Super HAD II CCD technology for high clarity and color accuracy.
Designed for both indoor and outdoor environments, it supports multiple resolution options up to 1000 TVL, providing flexibility for diverse analog surveillance systems. Its 2.8–12 mm vari-focal lens ensures easy adjustment of the viewing angle, while the 36 infrared LEDs deliver night vision performance up to 30 meters.
Built with a durable metal housing and a constant current IR PCB board for stable illumination, the CITO-TR437F offers reliability and ease of installation. Advanced image functions such as 2DNR, DWDR (ATR), HLC, and motion detection enhance image quality in variable lighting conditions.
With DC 12 V operation and robust environmental protection, this camera is ideal for retail, office, and industrial security applications.
SONY Super HAD II CCD image sensor for superior image clarity
Multiple resolutions: 480TVL / 600TVL / 700TVL / 800TVL / 1000TVL
2.8–12 mm vari-focal lens (1.3 MP) for flexible field of view
36 IR LEDs for up to 30 m night vision
2DNR, DWDR (ATR), HLC, BLC, motion detection, and privacy masking
Metal housing with constant current IR board for durability
Multilingual OSD (up to 10 languages)
Operating temperature: −20 °C ~ +50 °C
| System | 1/3" SONY Super HAD II CCD; metal case; analog dome camera; UTC/cable OSD optional |
|---|---|
| Video | 480–1000 TVL resolution (color); 2.8–12 mm vari-focal lens; 0 Lux (IR on); ATR(DWDR), 2DNR, HLC, BLC; 20–30 m IR distance (36 × Φ5 LEDs); 1.0 Vp-p composite video output, 75 Ω |
| Audio | unknown |
| Networking | Analog CVBS output (not IP); OSD menu control via cable/UTC |
| Storage | unknown |
| Power | DC 12 V ± 10%; 200 mA / 450 mA (IR on) |
| Environment | Operating −20 °C ~ +50 °C; lightning-proof; metal housing |
| Smart & App | 2DNR, DWDR, HLC, BLC, privacy mask, motion detection; no network app |
