HD-SDI 1080P bullet camera with 2.8–12 mm varifocal lens, dual LED array, and up to 45 m night vision.

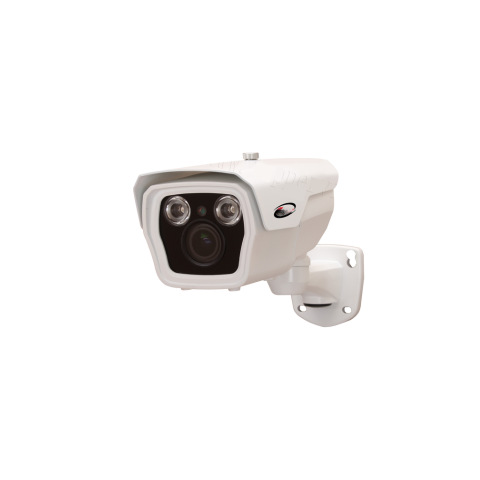

The Citocore CITO-TS573SDI is a professional-grade HD-SDI bullet camera built for high-definition monitoring in challenging environments. Designed with a robust metal housing and IP66-rated weatherproof protection, it ensures consistent image quality both indoors and outdoors.
Equipped with a 1/2.8″ Panasonic CMOS sensor and EYENIX ISP, the CITO-TS573SDI delivers 720P and 1080P (up to 1944 × 1092) HD video with enhanced clarity and low noise. The integrated 2.8–12 mm varifocal lens with internal zoom and focus allows flexible installation and precise field of view adjustment.
Featuring two high-intensity LED arrays, the camera provides infrared illumination up to 45 meters, ensuring clear visibility even in complete darkness. Advanced OSD functions include WDR, 3DNR, digital zoom, and privacy masking for optimized image control and privacy management.
This model is ideal for professional security systems requiring stable, high-resolution performance, durable construction, and extended IR night coverage.
1/2.8″ Panasonic CMOS sensor with EYENIX ISP.
Full HD 1080P / 720P HD-SDI output (1944 × 1092).
2.8–12 mm 2MP varifocal lens with internal zoom and focus.
Dual high-power IR LED arrays with 40–45 m range.
WDR, 3DNR, digital zoom, and privacy zone OSD functions.
IP66 weatherproof housing for outdoor use.
3-axis bracket mount for flexible positioning.
| System | HD-SDI bullet camera; 1/2.8" Panasonic CMOS sensor + EYENIX ISP; supports 720P / 1080P (1944 × 1092); 3-axis mount; metal housing; color white; vandal-resistant design. |
| Video | HD-SDI digital output; resolutions 720P / 1080P (1944 × 1092); 2.8–12 mm varifocal lens with internal zoom and focus; dual IR LED array; IR distance 40–45 m; WDR; 3DNR; digital zoom; privacy zone configuration; frame rate unknown; minimum illumination unknown. |
| Audio | unknown |
| Networking | not applicable (HD-SDI analog digital signal) |
| Storage | not applicable |
| Power | unknown (verify); typical HD-SDI input DC 12 V (verify). |
| Environment | IP66 waterproof housing; operating temperature unknown; humidity unknown. |
| Smart & App | OSD menu with WDR, 3DNR, digital zoom, and privacy masking. |
