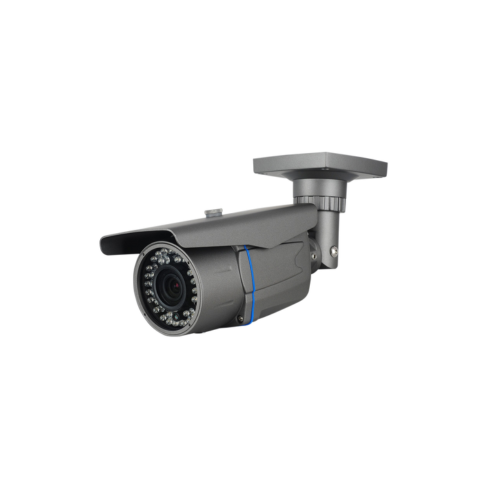

SONY CCD varifocal bullet camera with 2.8–12mm lens, 40M IR range, and metal housing for professional analog surveillance.
The Citocore TS-312F is a professional-grade long-range bullet camera engineered for superior image clarity and reliability. Built around a 1/3″ SONY Super HAD II CCD image sensor, it delivers sharp, noise-free video at up to 700TVL resolution. Designed for continuous operation, it offers exceptional low-light performance with 0 Lux (IR on) sensitivity and long-range infrared illumination up to 40 meters.
The camera’s 1.3-megapixel 2.8–12mm varifocal lens allows flexible adjustment for both wide-area and focused monitoring. Its metal housing, combined with a 3-axis mounting bracket, provides maximum installation flexibility and long-term durability in both indoor and outdoor environments.
Featuring advanced image optimization functions such as DWDR (ATR), 2DNR, HLC, and BLC, the TS-312F ensures precise image balance and visibility in complex lighting conditions. With its constant-current IR LED PCB and lightning-proof circuitry, this model is built for consistent, professional-grade surveillance performance.
1/3″ SONY Super HAD II CCD sensor for stable, high-quality video
Resolution options: 480TVL / 600TVL / 700TVL / 800TVL / 1000TVL
1.3MP 2.8–12mm varifocal lens for adjustable viewing angle
30–40M IR illumination range (42 × Φ5 LEDs)
Constant current IR LED PCB for consistent brightness
Automatic day/night switching with 0 Lux (IR on) performance
Advanced features: 2DNR, DWDR (ATR), HLC, BLC, Privacy Mask, Motion Detection, Mirror
Metal housing with 3-axis mount for versatile installation
Lightning-proof protection for outdoor safety
Multi-language OSD (EN, CN, ES, FR, PT, IT, RU, DE, JP)
| System | 1/3" SONY Super HAD II CCD; metal bullet housing; 3-axis mounting bracket; UTC/cable OSD optional |
|---|---|
| Video | 480–700 TVL (color); 1.3MP 2.8–12mm varifocal lens; 0 Lux (IR on); 42 × Φ5 IR LEDs; 30–40 m IR range; DWDR, 2DNR, HLC, BLC, Motion Detection, Privacy Mask, Mirror |
| Audio | unknown |
| Networking | Analog video output (1.0Vp-p Composite, 75 Ohm) |
| Storage | unknown |
| Power | DC12V ±10%; 200mA (normal) / 500mA (IR on) |
| Environment | Operating temperature −20°C ~ +50°C; lightning-proof; weather-resistant metal case |
| Smart & App | Motion detection, DWDR (ATR), 2DNR, HLC, BLC, Privacy Mask, Mirror; OSD multilingual interface |
varifocal bullet camera, SONY CCD, 700TVL, DWDR, IR night vision, outdoor CCTV, Citocore TS-312F
