High-resolution SONY CCD camera with 2.8–12mm varifocal lens, 40M IR range, and weather-resistant metal housing for outdoor surveillance.

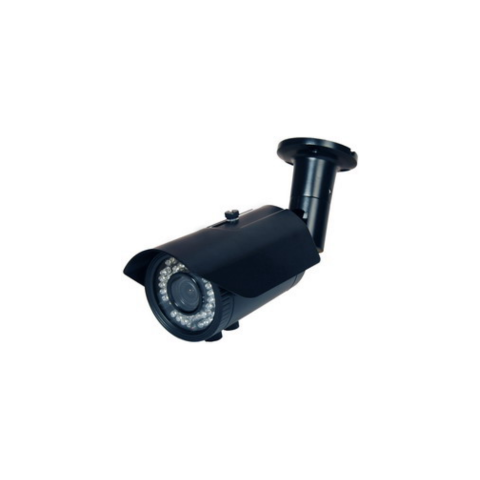

The Citocore TS-313F is a professional long-range IR bullet camera engineered for high-performance video monitoring in challenging lighting and environmental conditions. Built with a 1/3″ SONY Super HAD II CCD sensor, it delivers clear and stable video output at resolutions up to 700TVL, making it suitable for wide-area security applications.
Equipped with a 1.3-megapixel 2.8–12mm varifocal lens, the TS-313F provides flexible viewing options — from wide overviews to focused details. Its 42 infrared LEDs ensure powerful night vision up to 40 meters, enabling continuous 24-hour monitoring.
Designed with a durable metal enclosure and a 3-axis adjustable bracket, this model offers easy installation and precise positioning. Enhanced imaging functions such as DWDR, 2DNR, and motion detection ensure accurate, noise-free video in both bright and low-light conditions.
1/3″ SONY Super HAD II CCD image sensor
480TVL / 600TVL / 700TVL resolution options
1.3MP 2.8–12mm varifocal lens for adjustable focus and field of view
Long-range infrared night vision up to 40 meters (42 × Φ5 LEDs)
Constant current IR LED PCB for consistent brightness and extended lifespan
Automatic day/night switching with 0 Lux (IR on) performance
3-axis mounting bracket for flexible installation
Multi-language OSD menu (EN/CN/ES/FR/PT/IT/RU/DE/JP)
Advanced functions: 2DNR, DWDR (ATR), HLC, BLC, Motion Detection, Privacy Mask, Mirror
Lightning-proof and weather-resistant metal housing
| System | 1/3" SONY Super HAD II CCD; metal housing; 3-axis bracket; analog bullet camera; UTC/cable OSD optional |
|---|---|
| Video | Color 480TVL / 600TVL / 700TVL; 0 Lux (IR on); 1.3MP 2.8–12mm varifocal lens; 42 × Φ5 IR LEDs; IR range 30–40M; 2DNR, DWDR, HLC, BLC, Motion Detection, Mirror |
| Audio | unknown |
| Networking | Analog 1.0Vp-p Composite Output (75 Ohm impedance) |
| Storage | unknown |
| Power | DC12V ±10%; 200mA (standard) / 500mA (IR on) |
| Environment | Operating temperature −20°C ~ +50°C; lightning-proof; weather-resistant metal case |
| Smart & App | Motion detection, privacy masking, mirror, DWDR; multi-language OSD menu |
