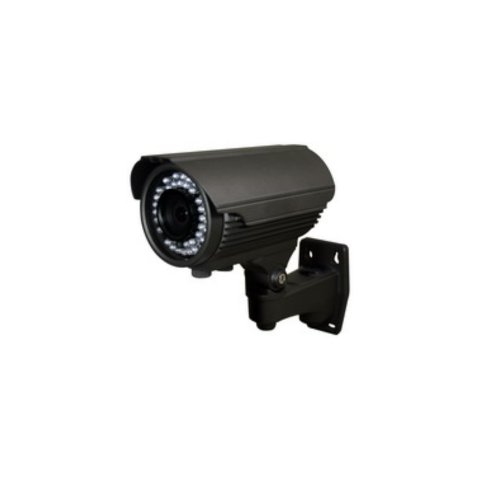

SONY CCD varifocal bullet camera with 40M IR range, 2.8–12mm lens, and metal housing for high-definition analog surveillance.
The Citocore TS-500F is a professional long-range IR bullet camera designed to deliver superior image clarity and performance for 24/7 security monitoring. Built around a 1/3″ SONY Super HAD II CCD image sensor, it captures crisp, detailed video in resolutions up to 700TVL, ensuring reliable surveillance for industrial, commercial, and outdoor applications.
Featuring a 1.3-megapixel 2.8–12mm varifocal lens, the TS-500F provides flexible focal adjustment for wide-area coverage or targeted viewing. Its 42 infrared LEDs deliver a powerful 40-meter night vision range with 0 Lux (IR on) operation. The metal body and 3-axis adjustable bracket allow easy installation in any orientation, while its constant current IR PCB guarantees stable LED brightness and long-term reliability.
With advanced video functions such as DWDR (ATR), 2DNR, HLC, BLC, and motion detection, the TS-500F offers precise imaging under varying light conditions, making it an ideal solution for high-performance analog CCTV systems.
1/3″ SONY Super HAD II CCD image sensor for superior clarity
480TVL / 600TVL / 700TVL resolution options
1.3MP 2.8–12mm varifocal lens for adjustable zoom and focus
Long-range infrared illumination up to 40 meters (42 × Φ5 mm LEDs)
Constant current IR PCB for stable illumination and LED lifespan
Automatic day/night mode with 0 Lux (IR on) performance
Advanced image processing: 2DNR, DWDR (ATR), HLC, BLC, privacy mask, motion detection, mirror
Lightning-proof and weather-resistant metal housing
3-axis mounting bracket for flexible installation
| System | 1/3" SONY Super HAD II CCD; metal bullet housing; 3-axis mount; UTC/cable OSD optional |
|---|---|
| Video | 480–700 TVL (color); 1.3MP 2.8–12mm varifocal lens; 0 Lux (IR on); 42 × Φ5 mm IR LEDs; 30–40 m IR range; 2DNR, DWDR, HLC, BLC, Privacy Mask, Motion Detection, Mirror |
| Audio | unknown |
| Networking | Analog video output (1.0Vp-p Composite, 75 Ohm) |
| Storage | unknown |
| Power | DC 12V ±10%; 200mA / 500mA (IR on) |
| Environment | Operating temperature −20°C to +50°C; lightning-proof; metal housing for outdoor installation |
| Smart & App | Motion detection, privacy masking, DWDR (ATR), 2DNR, HLC, mirror function; OSD language menu in EN/CN/ES/FR/PT/IT/RU/DE/JP |
