1.3 MP AHD 960P camera with 2.8–12 mm vari-focal lens, 36 IR LEDs, OSD, and IP66 housing.

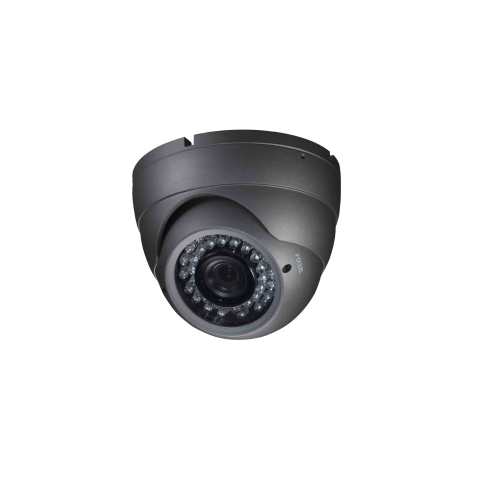

The Citocore CITO-TR-433F is a professional 960P AHD surveillance camera designed for clear and stable video transmission over long distances. Equipped with a SONY 1/2.8″ CMOS sensor and Nextchip2431 DSP, it delivers 1.3 MP (1280 × 960) resolution video with high signal-to-noise ratio and reliable color reproduction.
The 2.8–12 mm vari-focal lens provides flexible viewing angles, while 36 high-brightness IR LEDs ensure up to 30 meters of night vision. The camera includes OSD menu control in 12 languages, along with image enhancements such as BLC, 3D NR, AGC, and Auto White Balance for optimized performance.
Built with an IP66-rated metal housing, available in gray or white, the CITO-TR-433F is suitable for outdoor installations. It supports D-WDR functions and stable real-time transmission up to 500 meters over coaxial cable, making it ideal for commercial and residential security applications.
1.3 MP, 960P (1280 × 960) AHD resolution
SONY 238 1/2.8″ CMOS sensor + Nextchip2431 DSP
Vari-focal 2.8–12 mm lens for adjustable coverage
36 pcs Ø5 mm IR LEDs, up to 30 m night vision
OSD menu with 12 languages and image adjustments
D-WDR, BLC, 3D NR, AGC, Auto White Balance
Real-time transmission distance up to 500 m
IP66 metal housing (gray or white options)
| System | SONY 238 1/2.8" CMOS sensor; Nextchip2431 DSP |
|---|---|
| Video | 1.3 MP, 960P (1280 × 960); AHD standard; vari-focal lens 2.8–12 mm; 36 pcs Ø5 mm IR LEDs; IR distance up to 30 m; frame rate 30 fps (60 Hz) / 25 fps (50 Hz); PAL/NTSC; OSD menu (12 languages) |
| Audio | unknown |
| Networking | AHD analog video; max transmission distance 500 m |
| Storage | unknown |
| Power | DC 12 V ±10%; 120 mA–150 mA |
| Environment | Operating temperature −20 °C to +60 °C; IP66 metal housing (gray/white); dimensions Ø120 × 112 mm |
| Smart & App | D-WDR; BLC; 3D NR; Motion detection (up to 4 areas); Privacy mask (up to 4 areas); ICR day/night switch; multiple language OSD |
