1.3MP 960P HD-TVI dome with 2.8–12 mm varifocal lens, 30 m IR, 3DNR/BLC, and −20 °C to +60 °C operation.

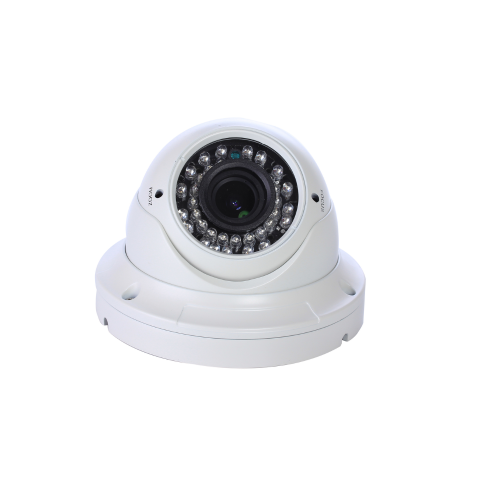

The Citocore CITO-TS-313F is a 1.3 MP (960P) HD-TVI dome camera designed for dependable day-and-night surveillance. It uses an FH8523 + Sony 238 sensor combination and delivers 1280 × 960 video at up to 30 fps.
A 2.8–12 mm varifocal lens lets you set the desired field of view, while 36 × Ø5 mm IR LEDs provide up to 30 m infrared range. Image enhancements include BLC and 3DNR to help maintain clarity in challenging lighting.
The camera supports PAL/NTSC systems and offers on-camera motion detection and privacy masks (up to four areas each). Powered by 12 V DC, it operates from −20 °C to +60 °C for indoor or sheltered outdoor deployments.
1.3 MP 960P resolution (1280 × 960) up to 30 fps
FH8523 + Sony 238 image sensor with 0.01 lux (F1.2) color sensitivity; 0 lux with IR
2.8–12 mm varifocal lens for flexible framing
36 × Ø5 mm IR LEDs with 30 m IR distance
BLC and 3DNR image processing; S/N ratio > 49 dB (AGC off)
Motion detection & privacy mask (up to 4 areas each)
12 V DC power, 120–150 mA consumption; −20 °C to +60 °C operation
| System | FH8523 + Sony 238 sensor; dome camera; varifocal 2.8–12 mm lens. |
|---|---|
| Video | Resolution 1280(H) × 960(V) (960P); 30 fps (60 Hz) / 25 fps (50 Hz); shutter 1/50(1/60) s to 1/100,000 s; min. illumination color 0.01 lux (F1.2, AGC ON); 0 lux with IR; image system PAL/NTSC; S/N > 49 dB (AGC off); BLC, 3DNR. |
| Audio | unknown |
| Networking | Analog HD-TVI; PAL/NTSC; no IP networking. |
| Storage | unknown |
| Power | 12 V DC ±10%; power consumption 120–150 mA. |
| Environment | Operating temperature −20 °C to +60 °C; IR distance up to 30 m; dimensions Ø120 mm × 112 mm. |
| Smart & App | Motion detection up to 4 areas; privacy mask up to 4 areas; auto/manual/ATW white balance; AGC; mirror; on-screen display supports multiple languages. |
