Vandal-proof SONY CCD dome camera with 2.8–12 mm vari-focal lens, 15 m IR range, and up to 1000 TVL resolution.

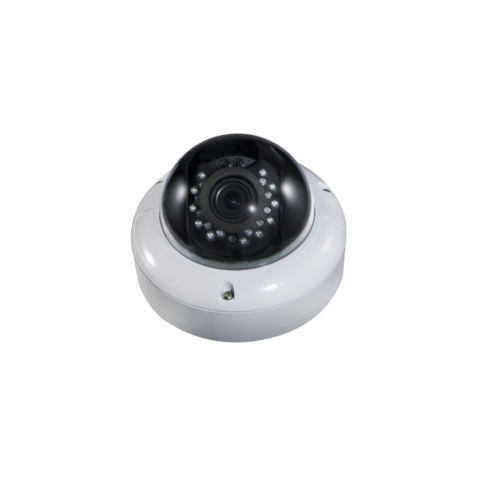

The Citocore CITO-TR409A is a professional-grade vandal-proof analog dome camera designed to deliver sharp, stable video performance in a compact, durable form factor. Featuring a 1/3″ SONY Super HAD II CCD sensor, it provides resolutions up to 1000 TVL with true-to-life color reproduction and reliable image consistency.
The 1.3-megapixel 2.8–12 mm vari-focal lens allows flexible adjustment for both wide and narrow views, ensuring precision coverage for indoor or semi-outdoor areas. Equipped with 21 infrared LEDs, the camera delivers up to 15 meters of IR night vision, supported by a constant-current IR PCB board for stable brightness and LED longevity.
The CITO-TR409A’s vandal-proof metal housing, along with a 3-axis adjustable mount, provides secure installation and flexible positioning. Its DWDR (ATR), 2DNR, HLC, and BLC imaging technologies enhance clarity in challenging lighting environments, making it ideal for commercial and industrial security setups.
Designed for dependability, it operates between −20 °C and +50 °C, ensuring continuous protection and peace of mind day and night.
1/3″ SONY Super HAD II CCD image sensor
480TVL / 600TVL / 700TVL / 800TVL / 1000TVL resolution options
1.3 MP 2.8–12 mm vari-focal lens for adjustable coverage
Infrared night vision up to 15 m (21 × Φ5 mm LEDs)
Constant-current IR PCB for stable performance and long LED lifespan
Vandal-proof metal housing with 3-axis mount for flexible installation
Image processing features: DWDR (ATR), 2DNR, HLC, BLC, privacy masking, motion detection, and mirror function
Lightning-proof circuit protection
Operating temperature: −20 °C to +50 °C
Power consumption: 200 mA / 450 mA (IR on) under DC 12 V
| System | 1/3" SONY Super HAD II CCD; metal housing; vandal-proof design; 3-axis mount; UTC/cable OSD optional |
|---|---|
| Video | 480–1000 TVL (color); 1.3 MP 2.8–12 mm vari-focal lens; 0 Lux (IR on); 21 × Φ5 mm LEDs; 10–15 m IR range; DWDR (ATR), 2DNR, HLC, BLC, privacy mask, motion detection, mirror; 1.0 Vp-p composite video output, 75 Ω |
| Audio | unknown |
| Networking | Analog CVBS output; OSD menu control via cable/UTC |
| Storage | unknown |
| Power | DC 12 V ± 10%; 200 mA / 450 mA (IR on) |
| Environment | Operating temperature −20 °C ~ +50 °C; lightning-proof; metal vandal-proof housing |
| Smart & App | DWDR (ATR), 2DNR, HLC, BLC, privacy mask, motion detection; no app connectivity |
